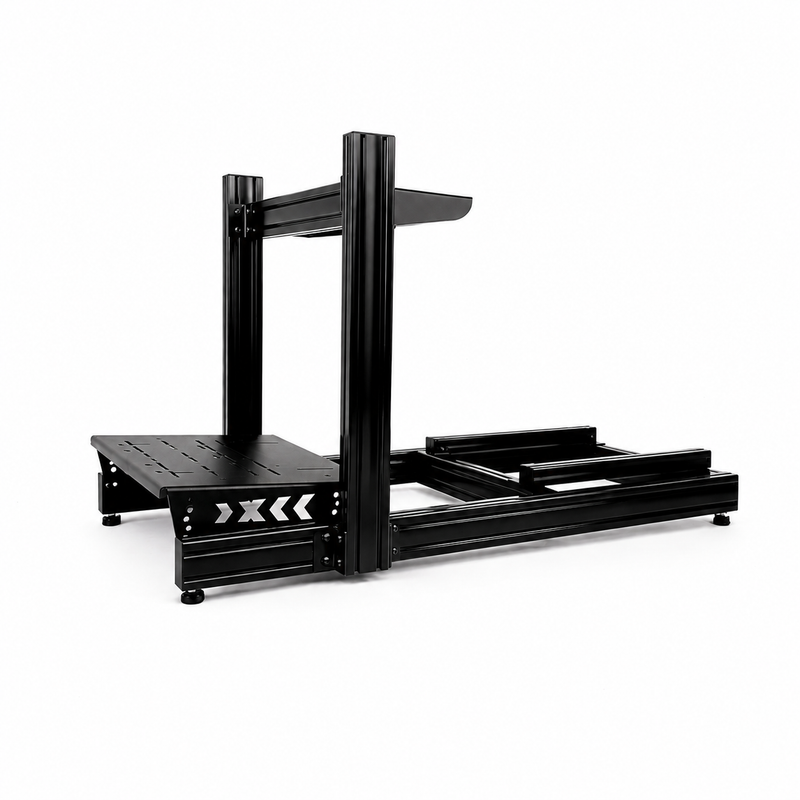

SimXPro X80 Sim Racing Cockpit
Sold by SimXPro
Including VAT. Excluding any shipping costs.
Specialist in motorsport equipment
Secure payments
Money back guarantee!
Global Shipping
Warehouse in Holland
MOTORSPORTWEBSHOP | SIMXPRO
Choose an adjustable 40 × 80 profile cockpit with more room to configure the steering, pedals and seat. The X80 offers black or silver finishes and a choice of pedal-deck configurations.
Product details and specifications
The SimXPro X80 is a versatile 40 × 80 mm aluminium-profile sim racing cockpit for drivers who want more adjustment freedom, a wider driving position and a platform that can grow with their hardware. Compared with the R80, the X80 provides more room around the wheelbase, pedals and seat while retaining the modularity of a full aluminium-profile cockpit.

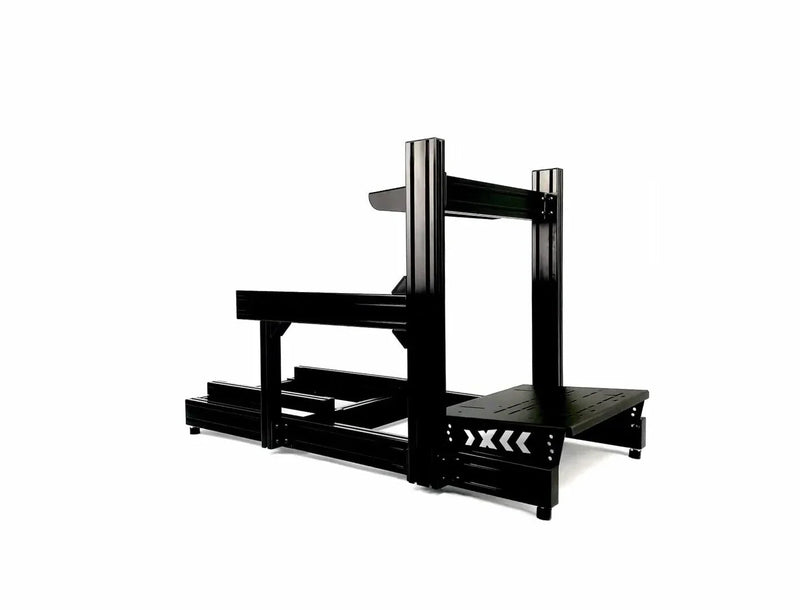

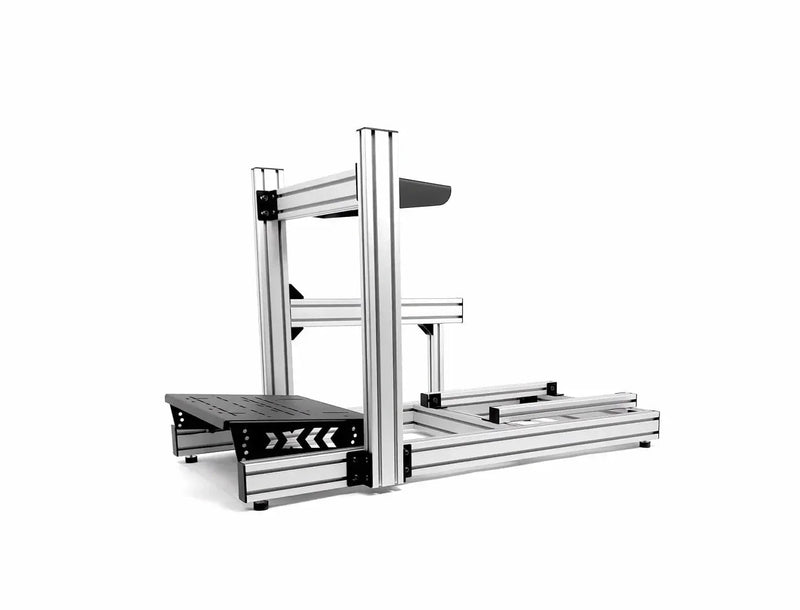

Available in industrial black powder coating or anodised silver, the X80 combines a clean professional finish with a rigid, open-profile construction that is easy to configure, expand and upgrade over time.
Rigid, Adjustable and Built to Evolve
The X80 is constructed from high-density European aluminium profiles with a 40 × 80 mm main-frame architecture. Full-length profile slots make it easy to reposition components and accessories without locking the cockpit into one fixed configuration.
The wheelbase position can be adjusted in height, angle and reach, while the pedal position can be tuned for height, reach and tilt. This makes the X80 suitable both as a first serious cockpit and as the long-term core of a simulator that will develop through several hardware upgrades.
- 40 × 80 mm aluminium-profile construction
- Approx. 125 × 64 × 75 cm cockpit dimensions, excluding the seat
- 58 cm inner width between the upright profiles
- Approx. 32 kg cockpit weight
- Recommended direct-drive wheelbase torque up to 14 Nm
- Recommended pedal force up to 150 kg
- Selectable Standard Pedal Deck or Profile Pedal Deck
- Maximum recommended user: approx. 120 kg / 2.00 m

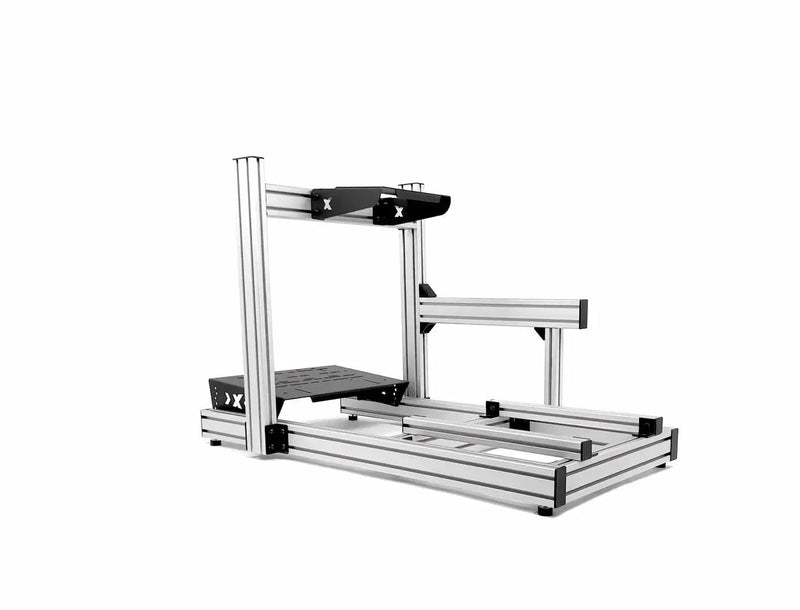

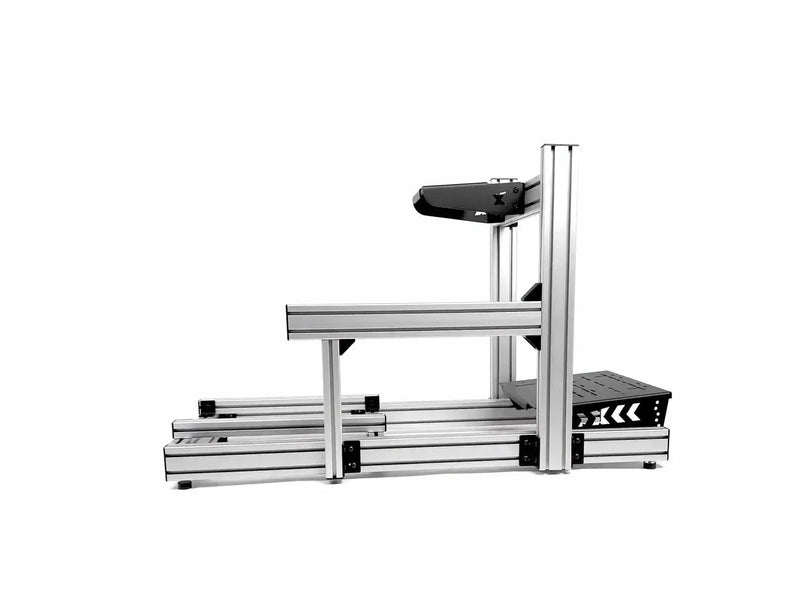

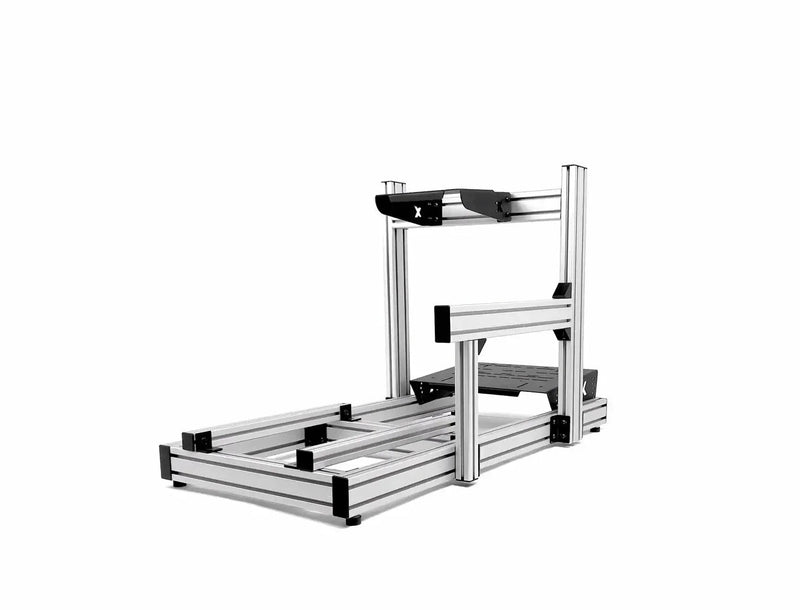

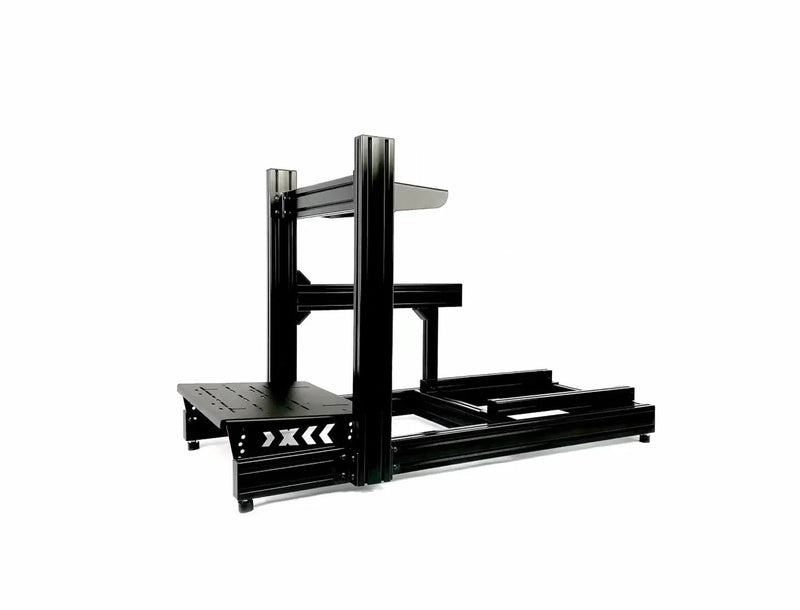

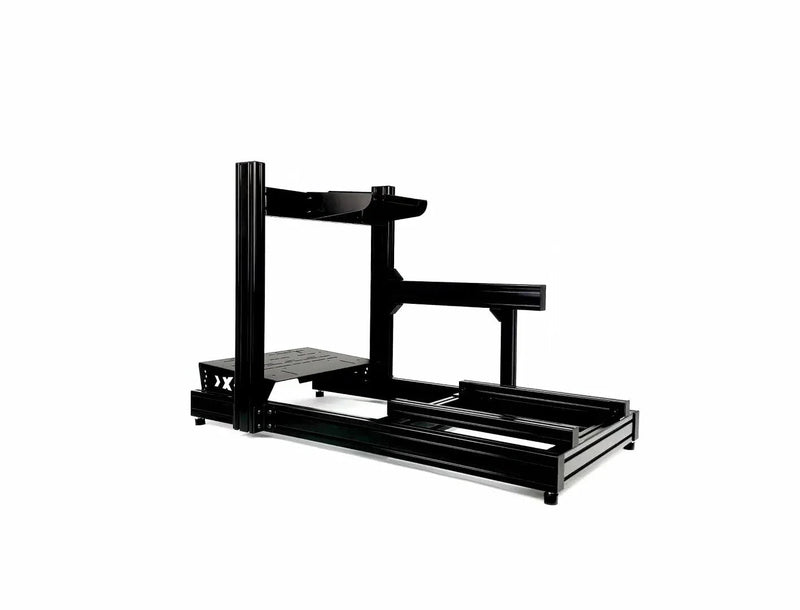

- Industrial black powder-coated or anodised silver finish
- Modular design compatible with SimXPro mounts and accessories
Wheelbase Mounting: Standard Flat Mount + Optional Front Mount
The X80 includes the SimXPro Universal Wheeldeck as standard. This is the flat universal wheel mount for compatible wheelbases that use an underside mounting pattern, including many popular models from Fanatec, MOZA Racing, Thrustmaster, Logitech G, SIMAGIC and other leading sim racing manufacturers.
If your wheelbase requires or benefits from front mounting, the X80 can also be fitted with a separately purchased front-mount solution. Compatible options include the SimXPro Universal DD Front Mount and selected brand-specific front-mount or side-to-front-mount solutions. These are optional upgrades and are not included with the standard X80.
The recommended wheelbase torque for the X80 cockpit is up to 14 Nm. A wheelbase can be mechanically compatible with a mounting solution while producing more torque than the recommended cockpit rating, so always distinguish mounting compatibility from the recommended operating range.
Choose the Right Pedal Deck

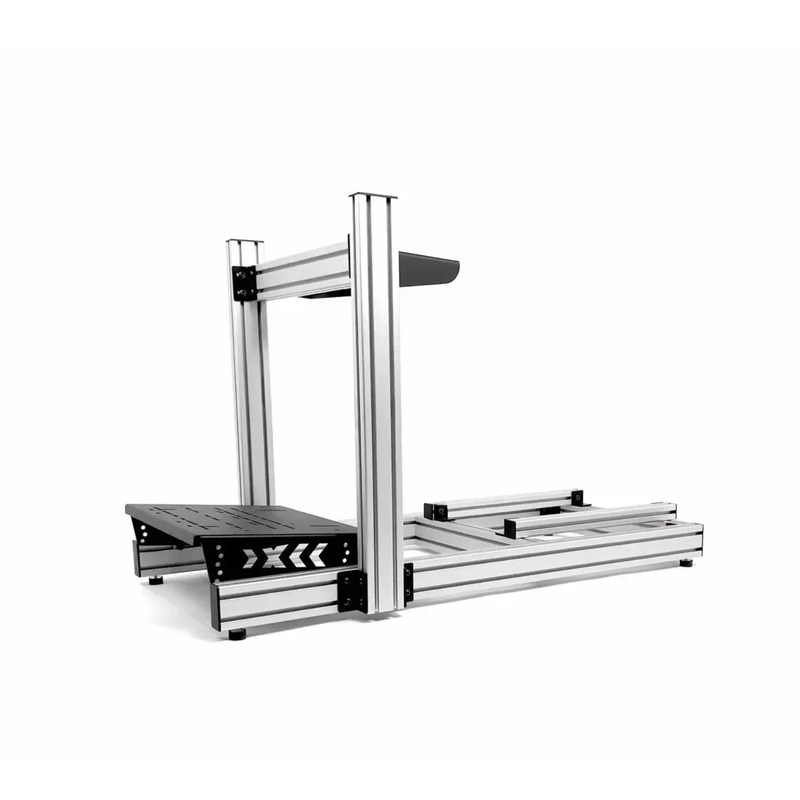

The X80 is available with two pedal mounting configurations. The Standard Pedal Deck is a solid and practical choice for many common pedal sets, including popular models from Fanatec, Thrustmaster, Logitech and MOZA Racing.

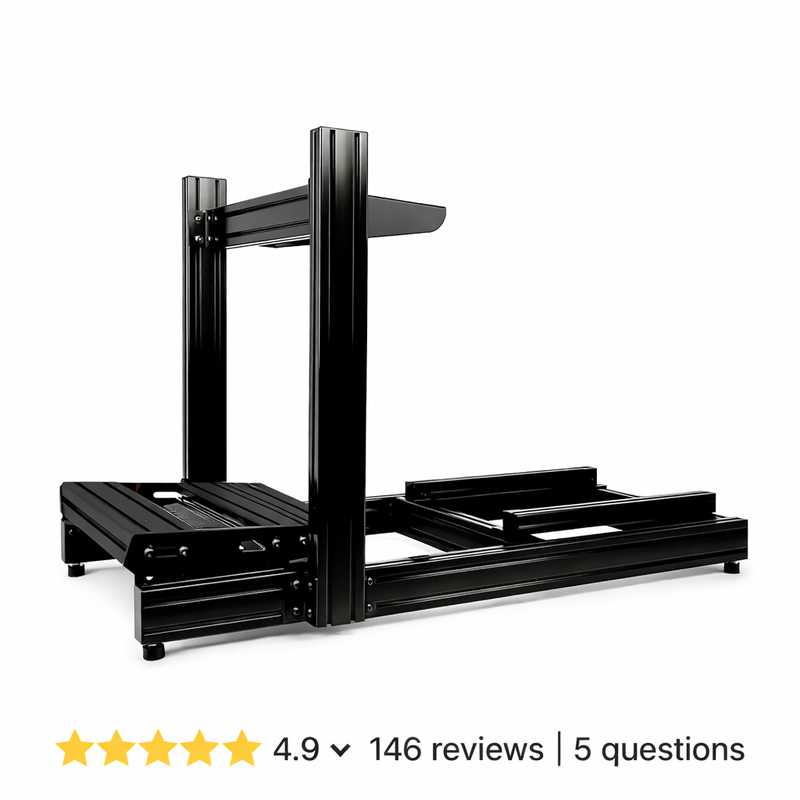

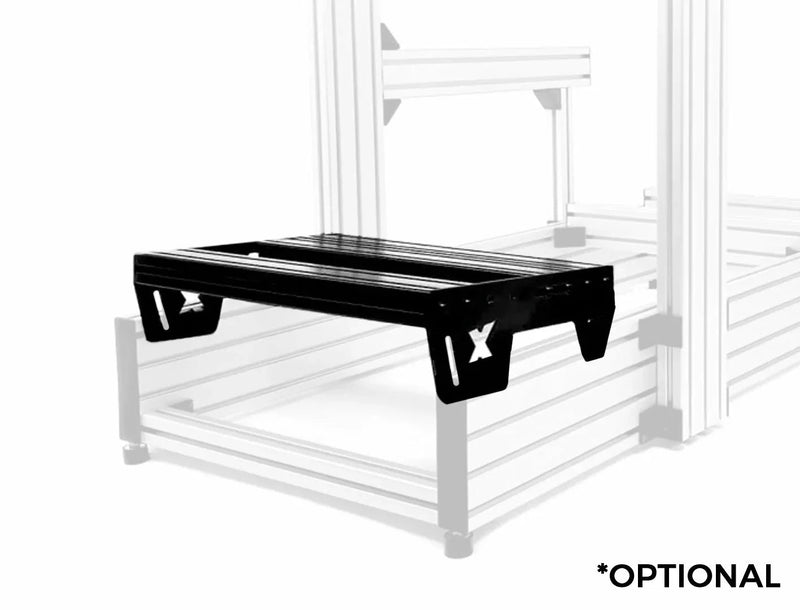

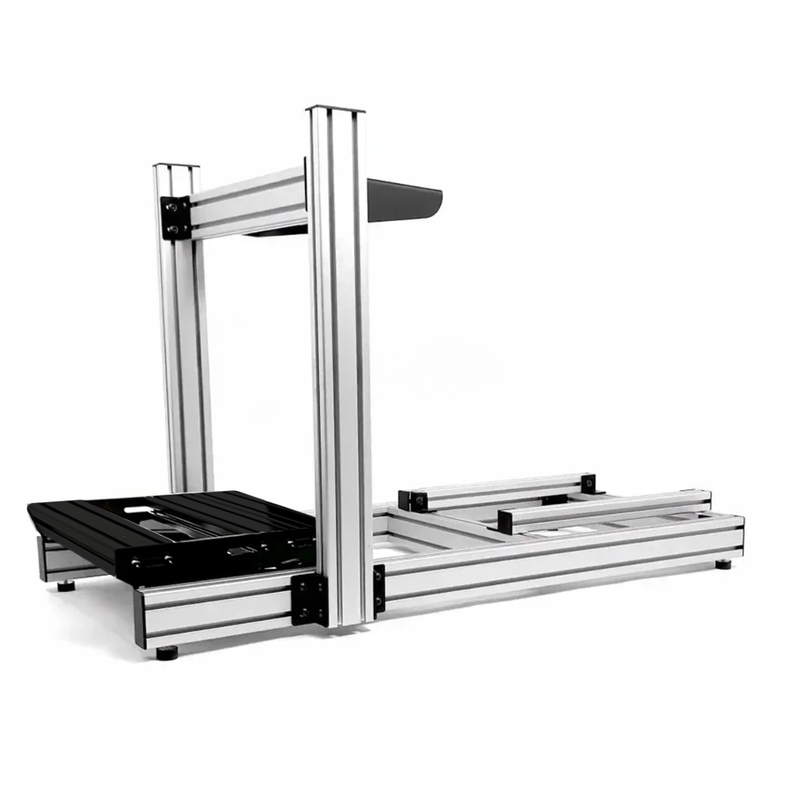

Choose the Profile Pedal Deck when using stronger load-cell or hydraulic pedals, when broader mounting compatibility is required or when maximum adjustment freedom is the priority. Its aluminium-profile construction provides greater rigidity and more flexibility to configure pedal position, reach and angle. The X80 is recommended for pedal forces up to 150 kg.
Seat Compatibility and Driving Position
The X80 is compatible with all SimXPro sim racing seats when used with the appropriate mounting hardware, as well as a wide range of third-party sim racing and motorsport seats. Side-mounted bucket seats can be installed with the SimXPro Universal Seat Mount . A compatible seat slider can be added where required to make forward and backward adjustment easier or to share the cockpit between different drivers.
Shifter, Handbrake and Display Upgrades

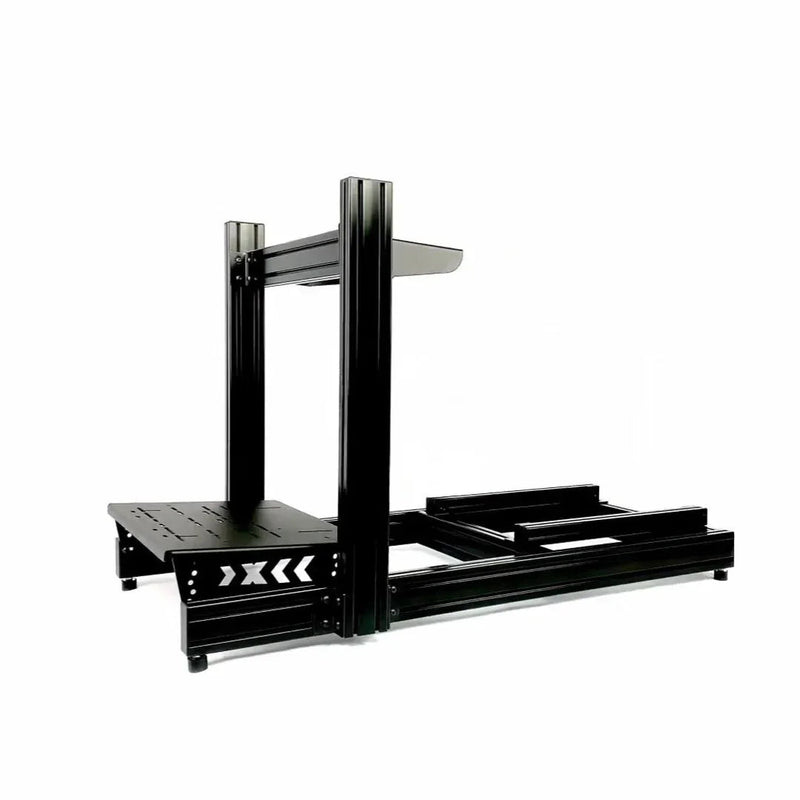

A shifter mounting profile is not included as standard with the X80. The optional Simple Shifter Profile Mount or Extended Shifter Profile Mount can be positioned through the aluminium-profile slot system and provide a flexible base for most common shifters and handbrakes.
For a single-screen setup, the X80 is compatible with the SimXPro Basic Single Integrated Monitor Mount for R80/X80 . For an integrated triple-screen configuration, choose the SimXPro Integrated Triple Screen Setup Heavy . Suitable freestanding monitor stands can also be used independently of the cockpit.
What's Included
- 40 × 40 mm and 40 × 80 mm aluminium-profile cockpit frame
- Universal Wheeldeck / flat universal wheel mount
- Selected Standard Pedal Deck or Profile Pedal Deck
- Corner brackets, bolts, nuts, T-nuts and washers
- End caps for visible profiles
- Cover caps for visible nuts
- Pre-packed hardware bags for the assembly steps
- Step-by-step assembly manual
Wheelbase mounting bolts are not included because these are brand-specific. A front mount, shifter mount, seat, seat brackets, wheelbase, pedals and monitor are not included unless explicitly selected or purchased separately.
Assembly and Warranty
Allow approximately 60–120 minutes for assembly depending on experience. Assemble the cockpit on a level surface and, where possible, use two people to make alignment easier before final tightening. A step-by-step assembly manual is included, and the X80 assembly video is available online.
The X80 cockpit frame is covered by a 5-year warranty .
Who Should Choose the SimXPro X80?
Choose the X80 if you want a highly adjustable aluminium-profile cockpit with more positioning freedom than the R80, a selectable pedal deck and a broader wheel-mount upgrade path. It is particularly well suited to drivers who expect their simulator to grow and want a frame that can be reconfigured as wheelbase, pedals, seating, display setup or accessories change.
Plan your complete driving position
Start with the seat position, then set pedal reach and steering height around it. Keep a comfortable bend in your arms and allow enough clearance for your knees, entry and exit. A profile cockpit offers many adjustment points, so make one change at a time and check the position while seated.
Choose the wheel-mount version for the exact wheelbase: front, side and underside mounting patterns are different. Compare the selected bundle with the equipment you already own. A cockpit photograph can show a seat, displays and controls that are separate purchases unless the selected configuration expressly includes them.
Choose your configuration
Select the required version using the product options. The available combinations determine the supplied configuration; separate options are not automatically included with every version.
| Color | Black; Silver |
|---|---|
| Pedal Deck | Standard Pedal Deck; Profile Pedal Deck |
