SimXPro 40x40 Profile

Product details and specifications

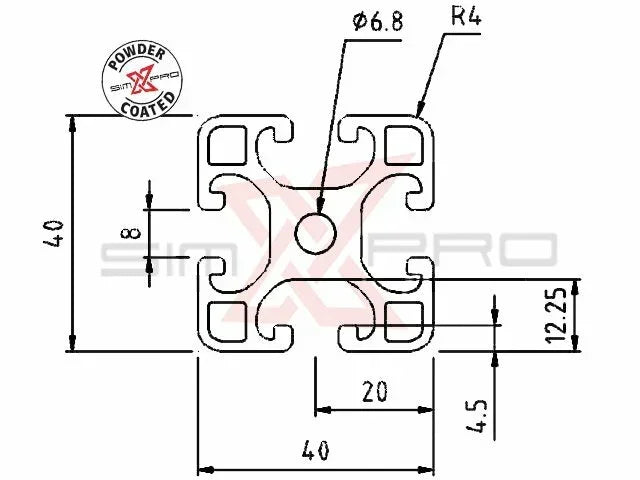

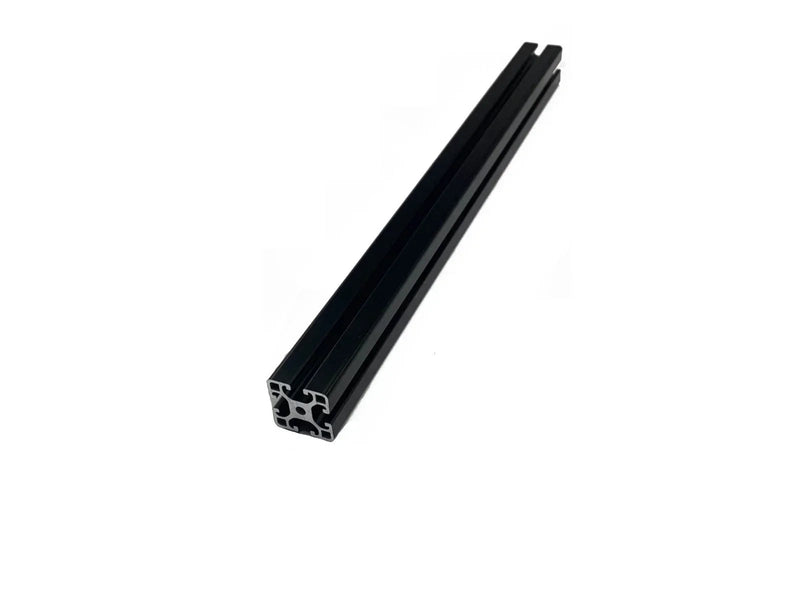

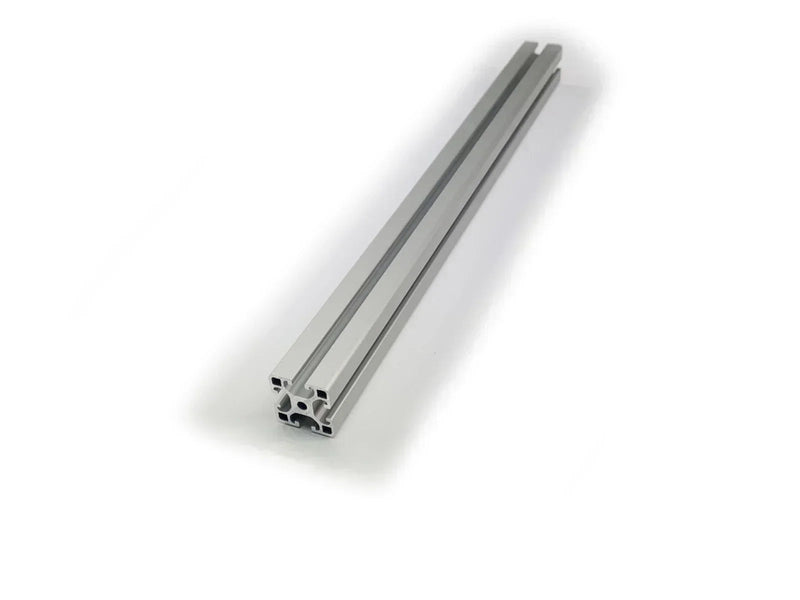

Aluminium profile with a 40 × 40 mm cross-section and 8 mm grooves. Listed weight: 1.80 kg per metre. Choose the length and, where offered, finish from the available variants. Black versions have a matt powder-coated finish; silver versions are offered where listed. Small surface marks may occur during cutting and transport. Threaded ends are supplied only where expressly identified in the selected variant.

Plan a modular profile assembly

Choose the profile cross-section for the structure you are building and the length for the available space. Remember that brackets, end caps and adjoining profiles take up additional room. Measure the finished assembly, rather than assuming a single profile length is equal to the complete outside dimension.

Match the 8 mm groove system with suitable T-nuts and connectors, and choose fastener lengths for the thickness of the attached component. Only variants expressly described as threaded include that machining detail. Check the selected finish and length together when matching existing cockpit components, and plan exposed ends for suitable finishing caps.

Choose your configuration

Select the required version using the product options. The available combinations determine the supplied configuration; separate options are not automatically included with every version.

Build your SimXPro setup

Explore related components and compare their individual mounting dimensions before combining parts:

• SimXPro 10x Corner Bracket - 4040 Aluminium Black
• SimXPro 10x T - Nuts with spring ball
• SimXPro 10x end caps black

Browse Cockpit Accessories for more options, explore the complete SimXPro range, or plan the rest of your simulator in Sim Racing.
