Simagic Alpha EVO Sport 9nm - Direct Drive Wheel Base

Choosing your configuration

This listing is for Simagic Alpha EVO Sport 9nm - Direct Drive Wheel Base. Use the specifications and package contents below to check which components are supplied.

Check steering-wheel connections, quick-release requirements, cockpit mounting and platform support. Console compatibility must be confirmed for the complete combination of base and wheel.

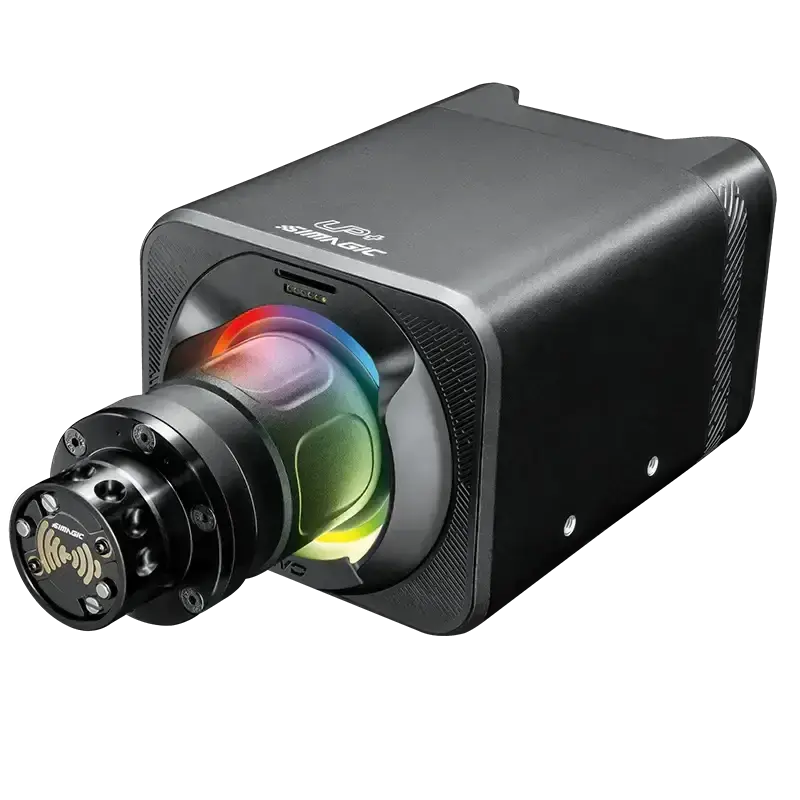

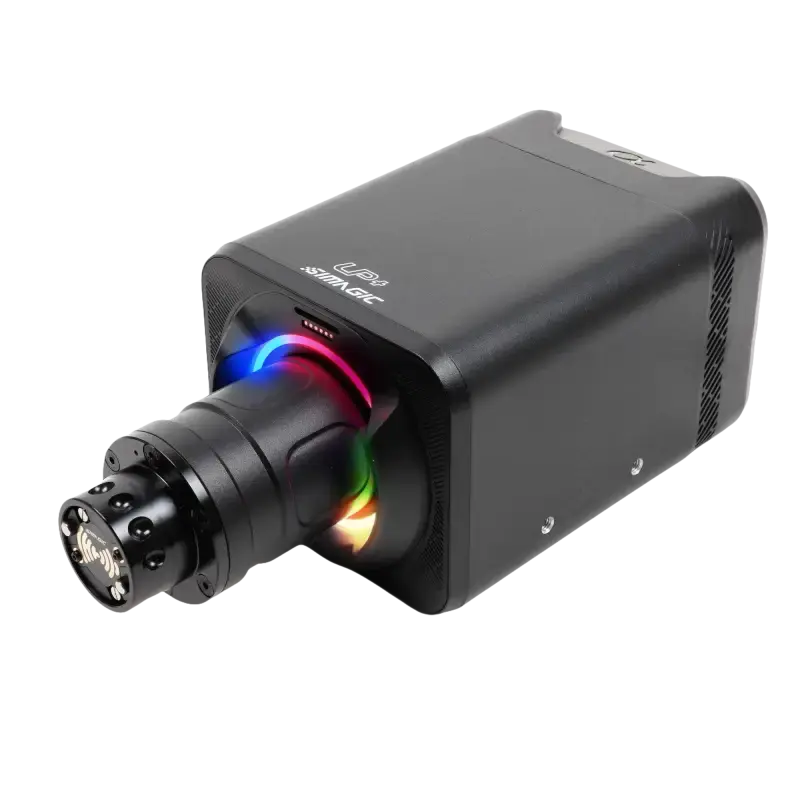

The SIMAGIC Alpha EVO Sport 9 Nm Direct Drive Wheel Base is a practical starting point for a dedicated PC racing setup. Its 9 Nm motor brings steering forces directly to the wheel, while the EVO platform adds modern control electronics and flexible equipment choices. It suits drivers moving beyond an entry-level steering system who want to spend time learning the car, refining their settings and building a cockpit around the disciplines they enjoy.

Why choose this product?

• 9 Nm maximum torque: a focused starting point for adjustable direct drive steering.
• EVO motor technology: ultra-low inertia and Zero-Cogging control support a smooth steering response.
• 21-bit position sensing: high-resolution measurement for precise steering input.
• Active cooling: thermal management designed for extended driving sessions.
• Expandable setup: compatible SIMAGIC wheels and optional mounting accessories let you build around your needs.

Product details

A direct connection to the car

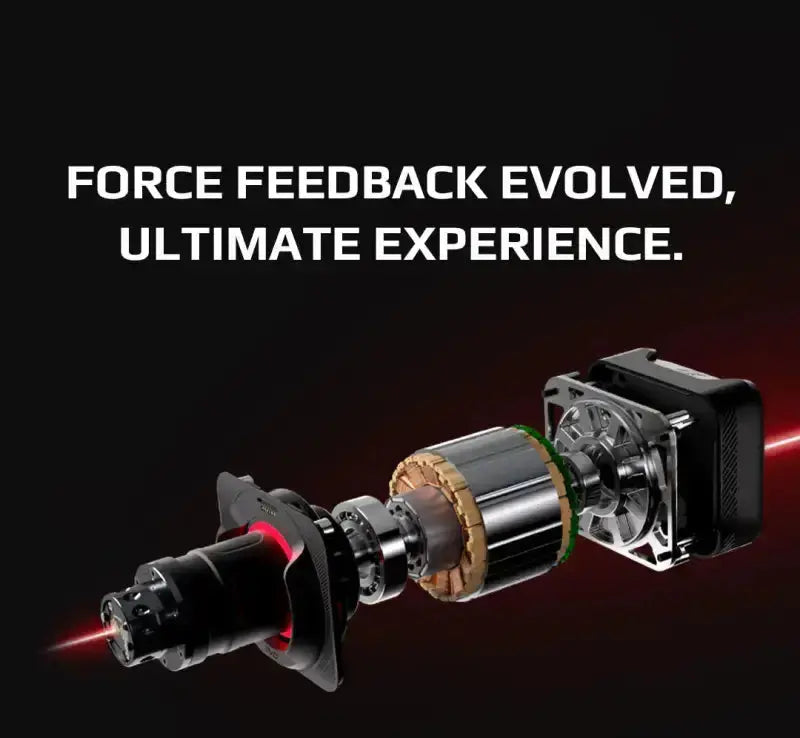

Direct drive places the steering wheel on the motor shaft rather than driving it through belts or gears. The Sport uses SIMAGIC's ultra-low-inertia servo design and Zero-Cogging technology to reduce the stepped sensation associated with motor cogging. The result is a platform designed to communicate changes in steering load smoothly. The feedback you feel still depends on the simulator, car and settings.

A sensible way to begin with 9 Nm

You do not need to run the Sport at its maximum output to benefit from direct drive. Start at a comfortable strength and use a familiar car to learn how steering load changes through a corner. Compare the same braking zone and corner exit over several laps before increasing the force. This approach helps separate useful feedback from settings that simply make the wheel heavier.

Choose the wheel around your racing

A GT-style wheel makes sense for circuit racing where you keep your hands on the grips. A round rim can be more practical for rally, drifting and frequent hand-over-hand steering. Diameter and wheel mass influence the sensation at your hands, so choose for the cars you drive as well as the appearance of the cockpit. Keep the complete wheel and quick-release connection within the manufacturer's supported combinations.

A compact base for a planned upgrade

The Sport shares its 281 × 130 × 110 mm manufacturer dimensions with the 12 Nm EVO. That helps when planning space around a wheel deck, monitor and seated position. Bottom mounting is available; optional side, front and desk fixtures provide alternative installations. Confirm the mounting pattern and support of your cockpit before ordering accessories.

Build confidence with repeatable settings

Use SimPro Manager to set steering rotation and force-feedback parameters, then match the relevant controls in your game. Begin with a supported preset and change one parameter at a time. Save a baseline profile before experimenting so you can return to a known setup. Comfortable settings that you can use for a complete session matter more than a high torque number.

Compatibility and setup

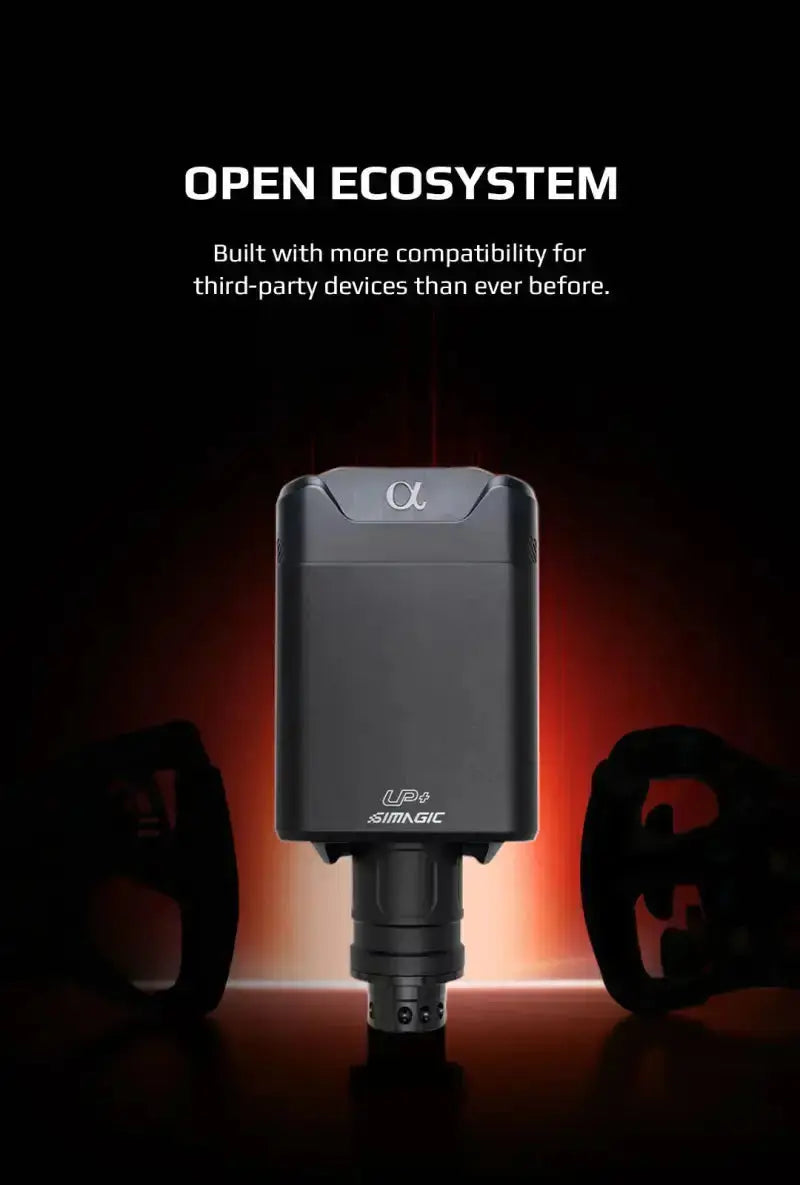

Build around a compatible SIMAGIC steering wheel and quick release, or use the optional QR-A arrangement for a supported third-party USB wheel. Confirm mechanical attachment, wheel power and button or display communication separately.

Download the current SIMAGIC SimPro Manager software and follow the model's installation guide. Check firmware, steering calibration and game controls before your first drive. SIMAGIC advertises native 360 Hz iRacing force-feedback support; using it depends on the relevant software, firmware and simulator configuration.

Use bottom mounting or the appropriate optional side, front or desk fixture. Front bracket installation can block magnetic connectivity, so plan the mounting around any magnetic accessories you intend to fit.

Recommended products for your 9 Nm setup

• Circuit racing: SIMAGIC GT NEO V2 is a steering-wheel option for this SIMAGIC setup. Choose a control layout that suits your cars and confirm the required wheel connection.
• Complete the pedal controls: SIMAGIC P1000 three-pedal set adds accelerator, brake and clutch inputs. Configure the pedals through their supported connection and check your cockpit's pedal mounting.
• Profile cockpit installation: consider the SIMAGIC Alpha EVO MB-S Side Mount Brackets for a suitable side-mount arrangement. Check profile spacing, fasteners and clearance for your exact cockpit.

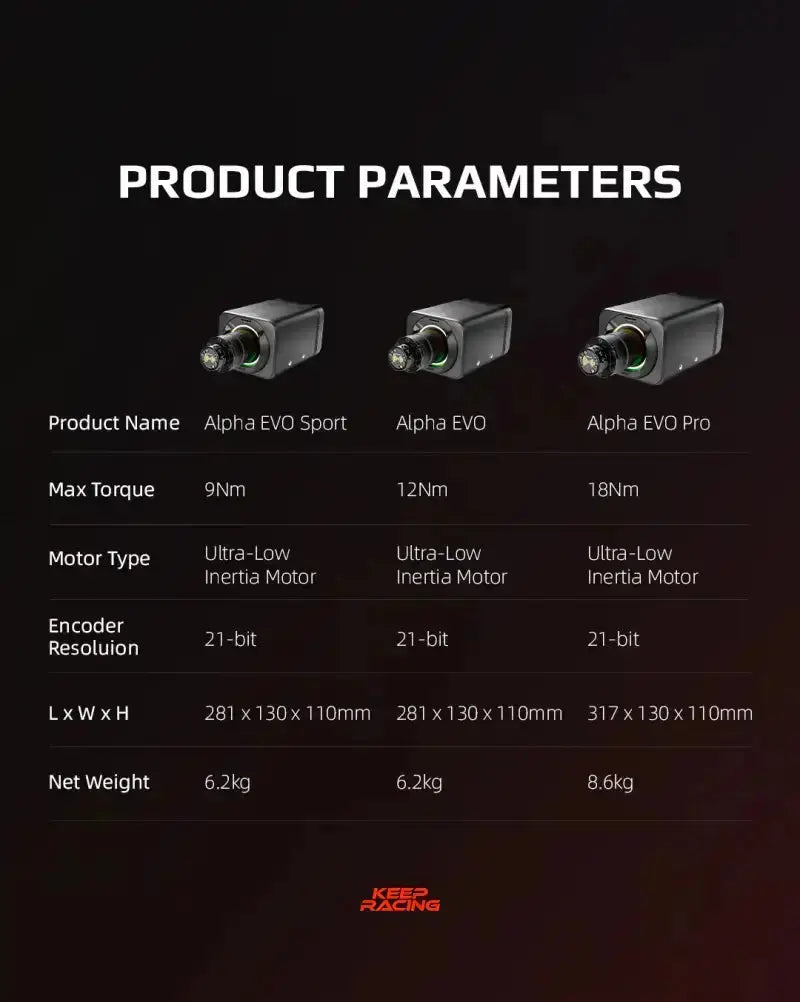

Compare the Alpha EVO range

If you are deciding how much output to choose, compare the Sport with the Alpha EVO 12 Nm for extra capacity or the Alpha EVO Pro 18 Nm for a higher-output cockpit. The Alpha EVO Ultra 28 Nm is the flagship option.

Specifications

What's in the box?

• SIMAGIC Alpha EVO Sport 9 Nm wheelbase
• USB-B data cable
• USB Type-C data cable
• Power supply and power cable
• Installation screw pack
• 4 mm Allen key

Steering wheel, pedals and optional mounting brackets are purchased separately. Small installation components may vary between production batches.

Frequently asked questions

Is 9 Nm enough for a first direct drive setup?

The Sport is a useful option for drivers who want dedicated direct drive steering without choosing a higher-torque model immediately. The right strength depends on wheel size, your preferences and the support of your cockpit.

Can I reduce the force while learning?

Yes. Configure a comfortable output in SimPro Manager and your simulator, then increase it gradually as you become familiar with the response.

Is a desk clamp supplied?

No. Desk fixtures and side or front mounting brackets are optional accessories. Use an appropriate fixture and check the desk or cockpit structure before installation.

Is a steering wheel included?

This listing is for the wheelbase. Choose a compatible steering wheel separately, or check a specifically listed wheelbase-and-wheel bundle.

Can I use this wheelbase with a console?

This description covers the supported PC setup. Do not assume native PlayStation or Xbox operation; any converter arrangement requires separate checks for the exact devices, software and console.
